IXTQ75N15 Datasheet (594.38 KB)
IXTQ75N15
IXYS
594.38 KB
High current power mosfet.

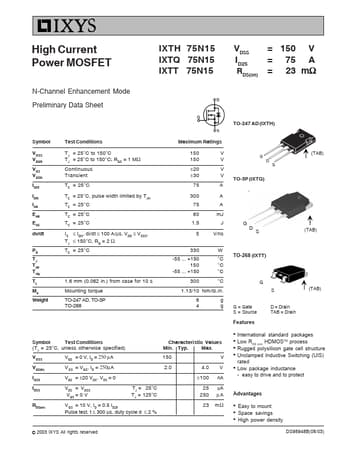

High Current Power MOSFET
N-Channel Enhancement Mode Preliminary Data Sheet
IXTH 75N15 IXTQ 75N15 IXTT 75N15
VDSS ID25
RDS(on)
= 150 V = 75 A = 23 .
* D = Drain TAB = Drain z International standard packages z Low RDS (on) HDMOSTM process z Rugged polysilicon gate cell structure z Unclamped Inductive Switching (UIS) rated z Low package inductance - easy to drive and to protect Advantages z Easy to mount z Space savings z High power density DS989
