IXYN80N90C3H1 - IGBT

Product Overview

IXYS

📥 Download Datasheet

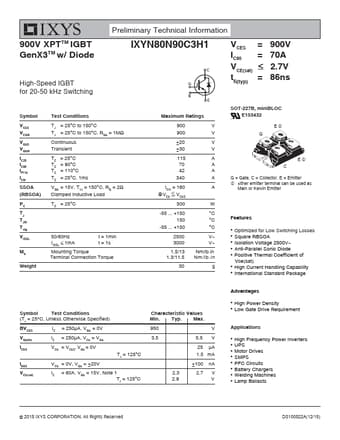

IXYN80N90C3H1 IGBT by IXYS - Datasheet Preview — Datasheet preview – IXYN80N90C3H1

Datasheet Details

Part number	IXYN80N90C3H1
Manufacturer	IXYS
File Size	184.58 KB
Description	IGBT
Datasheet	IXYN80N90C3H1 Datasheet
Additional preview pages of the IXYN80N90C3H1 datasheet.

Product details

Features

Optimized for Low Switching Losses.
Square RBSOA.
Isolation Voltage 2500V~.
Anti-Parallel Sonic Diode.
Positive Thermal Coefficient of Vce(sat).
High Current Handling Capability.
International Standard Package Symbol Test Conditions (TJ = 25C, Unless Otherwise Specified) BVCES IC = 250μA, VGE = 0V VGE(th) IC = 250μA, VCE = VGE ICES VCE = VCES, VGE = 0V TJ = 125°C IGES VCE = 0V, VGE = ±20V VCE(sat) IC = 60A, VGE = 15V, Note 1 TJ = 125°C Characteris.
