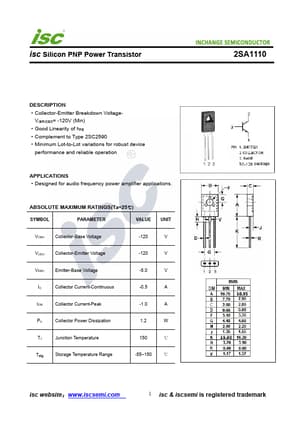

datasheet Preview Page 1 from Datasheet4u.com

2SA1110 POWER TRANSISTOR

isc Silicon PNP Power Transistor 2SA1110 .
Collector-Emitter Breakdown Voltage- V(BR)CEO= -120V (Min). Good Linearity of hFE. Complement to Type 2SC2590. Minimum Lot-to-Lot var.

2SA1110_InchangeSemiconductor.pdf

2SA1110 Datasheet Preview — Preview of 2SA1110 PDF

Datasheet Details

Part number:

2SA1110

Manufacturer:

Inchange Semiconductor

File Size:

215.51 KB

Description:

POWER TRANSISTOR

Applications

* Designed for audio frequency power amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -120 V VCEO Collector-Emitter Voltage -120 V VEBO Emitter-Base Voltage -5.0 V IC Collector Current-Continuous -0.5 A ICM Coll
