2SD1525 Datasheet, Transistor, Inchange Semiconductor

PDF File Details

Part number:

2SD1525

Manufacturer:

Inchange Semiconductor

File Size:

213.89kb

Download:

📄 Datasheet

Description:

Silicon npn darlington power transistor.

  • High DC Current Gain : hFE= 1000(Min.)@ IC= 20A
  • Collector-Emitter Breakdown Voltage- : V(BR)CEO = 100V(Min.)
  • <

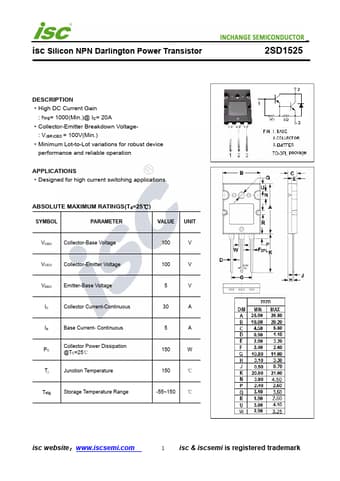

    Datasheet Preview: 2SD1525 📥 Download PDF (213.89kb)
    Page 2 of 2SD1525

    2SD1525 Application

    • Applications
    • Designed for high current switching applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Colle
