BFY420 - HiRel NPN Silicon RF Transistor

BFY420 Description

BFY420 HiRel NPN Silicon RF Transistor BFY420(ES) .
ESD: Electrostatic discharge sensitive device, observe handling precautions! Table 1 Product information Type Comment Pin Configuration 1 2 3.

BFY420 Features

* 4

BFY420 Applications

* For Oscillators up to 10 GHz
* Noise Figure F = 1.1 dB at 1.8 GHz Outstanding Gms = 21dB at 1.8 GHz 1
* Hermetically sealed microwave package
* Transition Frequency fT = 22 GHz
* SIEGETīƒĸ25-Line Infineon Technologies Grounded Emitter Transistor25 GHz fT-Line Product valid

📥 Download Datasheet

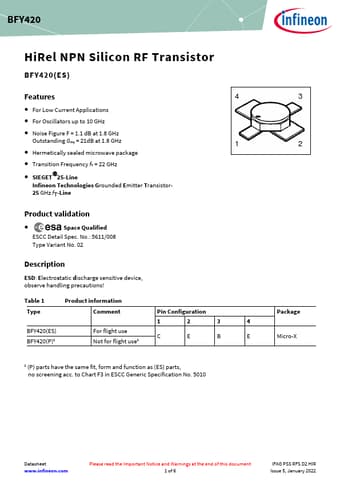

Preview of BFY420 PDF
datasheet Preview Page 2 datasheet Preview Page 3
