IPA083N10N5 Datasheet - Infineon

IPA083N10N5, MOSFET

IPA083N10N5 MOSFET OptiMOSª5 Power-Transistor, 100 V .

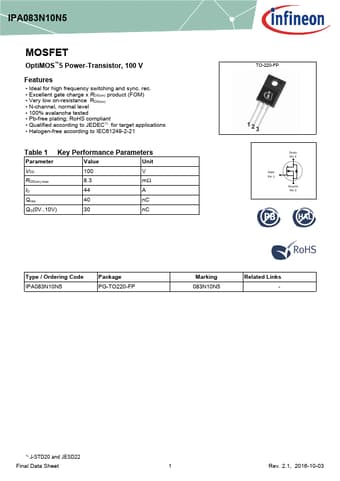

datasheet Preview Page 1 from Datasheet4u.com

IPA083N10N5-Infineon.pdf

IPA083N10N5 Datasheet Preview — Preview of IPA083N10N5 PDF

Datasheet Details

Part number:

IPA083N10N5

Manufacturer:

Infineon ↗

File Size:

1.64 MB

Description:

MOSFET

Features

* Ideal for high frequency switching and sync. rec.
* Excellent gate charge x RDS(on) product (FOM)
* Very low on-resistance RDS(on)
* N-channel, normal level
* 100% avalanche tested
* Pb-free plating; RoHS compliant
* Qualified according to J

Applications

* Halogen-free according to IEC61249-2-21 Table 1 Key Performance Parameters Parameter Value Unit VDS 100 V RDS(on),max 8.3 mΩ ID 44 A Qoss 40 nC QG(0V. .10V) 30 nC TO-220-FP Gate Pin 1 Drain Pin 2 Source Pin 3 Type / Ordering Code IPA083N10N5 Package PG-TO220-FP
