ITCH16045A2E, ITCH16045A2 Datasheet - Innogration

ITCH16045A2E, ITCH16045A2, High Power RF LDMOS FET

Innogration (Suzhou) Co., Ltd.Document Number: ITCH16045A Preliminary Datasheet V2.0 1300-1700MHz, 45W, 28V High Power RF LDMOS FETs .
The ITCH16045A is a 45-watt, input-matched LDMOS FETs, designed for Beidou Global Positioning System and communication/ISM applications with frequenci.

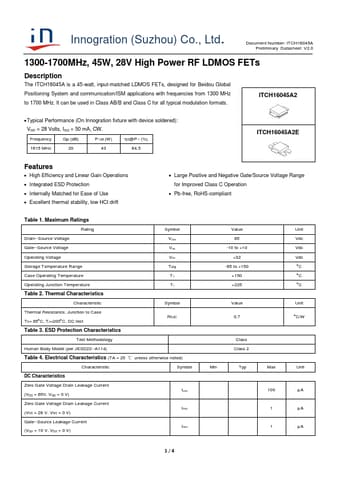

datasheet Preview Page 1 from Datasheet4u.com

ITCH16045A2-Innogration.pdf

ITCH16045A2E Datasheet Preview — This datasheet PDF includes multiple part numbers: ITCH16045A2E, ITCH16045A2. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ITCH16045A2E, ITCH16045A2

Manufacturer:

Innogration

File Size:

393.12 KB

Description:

High Power RF LDMOS FET

Note:

This datasheet PDF includes multiple part numbers: ITCH16045A2E, ITCH16045A2.
Please refer to the document for exact specifications by model.

Features

* High Efficiency and Linear Gain Operations
* Integrated ESD Protection
* Internally Matched for Ease of Use
* Excellent thermal stability, low HCI drift
* Large Positive and Negative Gate/Source Voltage Range for Improved Class C Operation
* Pb-free, RoHS-compliant Table

Applications

* with frequencies from 1300 MHz to 1700 MHz. It can be used in Class AB/B and Class C for all typical modulation formats. ITCH16045A2
* Typical Performance (On Innogration fixture with device soldered): VDD = 28 Volts, IDQ = 50 mA, CW. Frequency Gp (dB) P-1dB (W ) D@P-1 (%) 1615 MHz 20
