ITCH16180B4

High Power RF LDMOS FET

ITCH16180B4 Features

* High Efficiency and Linear Gain Operations

* Integrated ESD Protection

* Internally Matched for Ease of Use

* Optimized for Doherty Applications

* Large Positive and Negative Gate/Source Voltage Range for Improved Class C Operation

* Excellent thermal stability, low HCI dri

ITCH16180B4 General Description

The ITCH16180B4 is a 180-watt, internally matched LDMOS FET, designed for multicarrier WCDMA/PCS/DCS/LTE base station and ISM applications with frequencies from 1300 to 1600 MHz. Four leads can be configured as single ended, 180 degree push-pull or 90 degree hybrid or Doherty with proper external ma.

ITCH16180B4 Datasheet (1.12 MB)

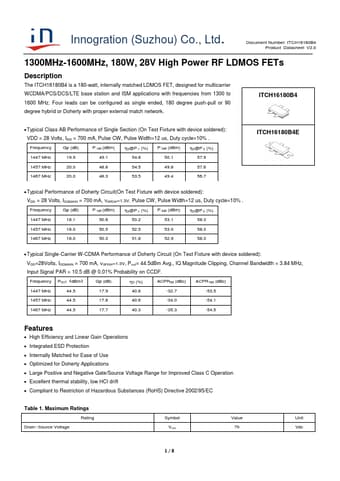

Preview of ITCH16180B4 PDF

Datasheet Details

Part number:

ITCH16180B4

Manufacturer:

Innogration

File Size:

1.12 MB

Description:

High power rf ldmos fet.
