ICS87974I Datasheet, Generator, Integrated Circuit Systems

ICS87974I Features

  • Generator
  • Fully integrated PLL
  • 15 single ended 3.3V LVCMOS/LVTTL outputs
  • 2 LVCMOS/LVTTL clock inputs for redundant clock applications
  • CLK0 and CLK1 accepts

PDF File Details

Part number:

ICS87974I

Manufacturer:

Integrated Circuit Systems

File Size:

163.26kb

Download:

📄 Datasheet

Description:

Lvcmos/lvttl clock generator. The ICS87974I is a low skew, low jitter 1-to-15 LVCMOS/LVTTL Clock Generator/Zero Delay HiPerClockS™ Buffer and is a member of the Hi

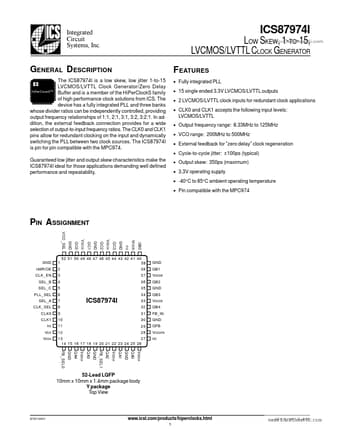

Datasheet Preview: ICS87974I 📥 Download PDF (163.26kb)
Page 2 of ICS87974I Page 3 of ICS87974I

ICS87974I Application

  • Applications
  • CLK0 and CLK1 accepts the following input levels: LVCMOS/LVTTL
  • Output frequency range: 8.33MHz to 125MHz

TAGS

ICS87974I
LVCMOS
LVTTL
CLOCK
GENERATOR
Integrated Circuit Systems
