ICS87946-01 Datasheet, generator equivalent, ICS

ICS87946-01 Features

  • Generator
  • 10 single ended LVCMOS outputs, 7Ω typical output impedance
  • LVPECL clock input pair
  • PCLK, nPCLK supports the following input levels: LVPECL, CML, SSTL

PDF File Details

Part number:

ICS87946-01

Manufacturer:

ICS

File Size:

184.50kb

Download:

📄 Datasheet

Description:

Lvpecl-to-lvcmos/lvttl clock generator. The ICS87946-01 is a low skew, ÷1, ÷2 Clock Generator and a member of the HiPerClockS™ HiPerClockS™ family of High Performance Clock

Datasheet Preview: ICS87946-01 📥 Download PDF (184.50kb)

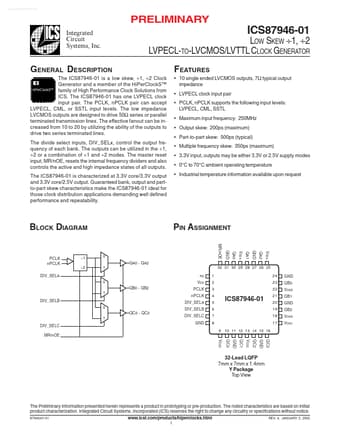

Page 2 of ICS87946-01 Page 3 of ICS87946-01

ICS87946-01 Application

  • Applications demanding well defined performance and repeatability. BLOCK DIAGRAM PIN ASSIGNMENT MR/nOE GND GND VDDA VDDA QA0 QA1 QA2 PCLK nPCLK D
