ICS87949-01 - CLOCK GENERATOR

ICS

ICS87949-01 Description

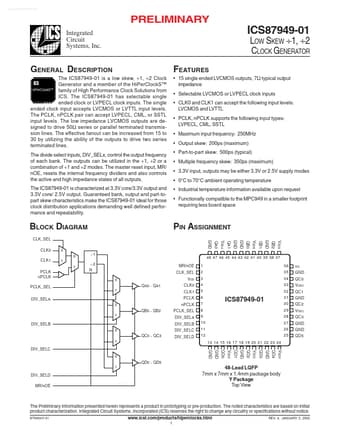

www.DataSheet4U.com PRELIMINARY Integrated Circuit Systems, Inc.ICS87949-01 LOW SKEW ÷1, ÷2 CLOCK GENERATOR GENERAL .
The ICS87949-01 is a low skew, ÷1, ÷2 Clock Generator and a member of the HiPerClockS™ HiPerClockS™ family of High Performance Clock Solutions from IC.

ICS87949-01 Features

* 15 single ended LVCMOS outputs, 7Ω typical output impedance
* Selectable LVCMOS or LVPECL clock inputs
* CLK0 and CLK1 can accept the following input levels: LVCMOS and LVTTL
* PCLK, nPCLK supports the following input types: LVPECL, CML, SSTL
* Maximum input

ICS87949-01 Applications

* demanding well defined performance and repeatability. BLOCK DIAGRAM CLK_SEL CLK0 CLK1 PCLK nPCLK PCLK_SEL 1 DIV_SELA 0 QB0 - QB2 1 DIV_SELB 0 QC0 - QC3 1 DIV_SELC 0 QD0 - QD5 1 DIV_SELD MR/nOE 0 0 1 1 ÷1 ÷2 R 0 QA0 - QA1 PIN ASSIGNMENT GND GND GND GND VDDB VDDA VDDB QA0 QA1 QB0 QB1 QB2 48 47 46 4

📥 Download Datasheet

ICS87949-01 Datasheet Preview — Preview of ICS87949-01 PDF

Datasheet Details

Part number: ICS87949-01
Manufacturer: ICS
File Size: 152.39 KB
Datasheet: ICS87949-01_ICS.pdf
Description: CLOCK GENERATOR
