ICS87972I - 1-TO-12 LVCMOS CLOCK MULTIPLIER/ZERO DELAY BUFFER

Product Overview

ICS

ICS87972I 1-TO-12 LVCMOS CLOCK MULTIPLIER/ZERO DELAY BUFFER by ICS - Datasheet Preview — Datasheet preview – ICS87972I

Datasheet Details

Part number	ICS87972I
Manufacturer	ICS
File Size	175.90 KB
Description	1-TO-12 LVCMOS CLOCK MULTIPLIER/ZERO DELAY BUFFER
Datasheet	ICS87972I Datasheet

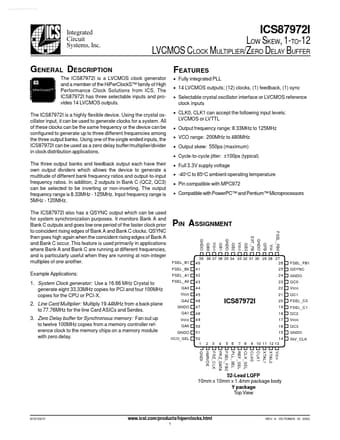

Additional preview pages of the ICS87972I datasheet.

Product details

Description

,&6 HiPerClockS™ The ICS87972I is a LVCMOS clock generator and a member of the HiPerClockS™ family of High Performance Clock Solutions from ICS.The ICS87972I has three selectable inputs and provides 14 LVCMOS outputs.The ICS87972I is a highly flexible device.Using the crystal oscillator input, it can be used to generate clocks for a system.All of these clocks can be the same frequency or the device can be configured to generate up to three different frequencies among the three output banks

Features

Fully integrated PLL.
14 LVCMOS outputs; (12) clocks, (1) feedback, (1) sync.
Selectable crystal oscillator interface or LVCMOS reference clock inputs.
CLK0, CLK1 can accept the following input levels: LVCMOS or LVTTL.
Output frequency range: 8.33MHz to 125MHz.
VCO range: 200MHz to 480MHz.
Output skew: 550ps (maximum).
Cycle-to-cycle jitter: ±100ps (typical).
Full 3.3V supply voltage.
-40°C to 85°C ambient.
