ICS87972I-147 - 1-TO-12 LVCMOS/LVTTL CLOCK MULTIPLIER/ZERO DELAY BUFFER

ICS87972I-147 Description

LOW SKEW, 1-TO-12 LVCMOS/LVTTL CLOCK MULTIPLIER/ ZERO DELAY BUFFER ICS87972I-147 General .
ICS HiPerClockS™ The ICS87972I-147 is a low skew, LVCMOS/LVTTL Clock Generator and a member of the HiPerClockS™ family of High Performance Clock Sol.

ICS87972I-147 Features

* Fully integrated PLL
* Fourteen LVCMOS/LVTTL outputs; (12)clocks, (1)feedback, (1)sync
* Selectable crystal oscillator interface or LVCMOS/LVTTL reference clock inputs
* CLK0, CLK1 can accept the following input levels: LVCMOS or LVTTL
* Output frequency ran

ICS87972I-147 Applications

* The three output banks and feedback output each have their own output dividers which allows the device to generate a multitude of different bank frequency ratios and output-to-input frequency ratios. In addition, 2 outputs in Bank C (QC2, QC3) can be selected to be inverting or non-inverting. The

📥 Download Datasheet

Preview of ICS87972I-147 PDF

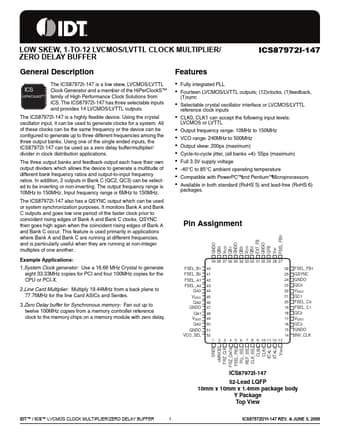

datasheet Preview Page 2 datasheet Preview Page 3
