IRF6710S2 Power MOSFET

The IRF6710S2TRPbF combines the latest HEXFET® Power MOSFET Silicon technology with the advanced DirectFETTM packaging to achieve improved performance in a package that has the footprint of a MICRO-8 and only 0.7 mm profile. The DirectFET package is compatible with existing layout geometries used in.

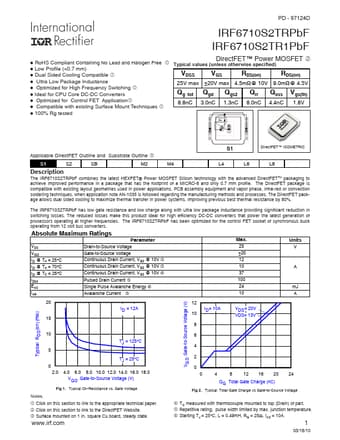

PD - 97124D IRF6710S2TRPbF IRF6710S2TR1PbF l RoHS Compliant Containing No Lead and Halogen Free DirectFET Power MOSFET Typical values (unless otherwise specified) l Low Profile (<0.7 mm) l Dual Sided Cooling Compatible VDSS VGS RDS(on) RDS(on) l Ultra Low Package Inductance l Optimized for High Frequency Switching l Ideal for CPU Core DC-DC Converters 25V max ±20V max 4.5mΩ@ 10V 9.0mΩ@ 4.5V Qg tot Qgd Qgs2 Qrr Qoss Vgs(th) l Optimized for Control FET Application l Comp.
