IRF6712SPBF, IRF6712STRPBF Datasheet - International Rectifier

IRF6712SPBF - N-Channel HEXFET Power MOSFET

The IRF6712SPbF combines the latest HEXFET® Power MOSFET Silicon technology with the advanced DirectFETTM packaging to achieve the lowest on-state resistance in a package that has the footprint of a MICRO-8 and only 0.7 mm profile. The DirectFET package is compatible with existing layout geometries .
IRF6712SPbF IRF6712STRPbF l RoHS Compliant and Halogen Free  l Low Profile (<0.7 mm) l Dual Sided Cooling Compatible  l Ultra Low Package Inductance l Optimized for High Frequency Switching  l Ideal for CPU Core DC-DC Converters DirectFET™ Power MOSFET ‚ Typical values (unless otherwise specified) VDSS VGS RDS(on) RDS(on) 25V max ±20V max 3.8m@ 10V 6.7m@ 4.5V Qg tot Qgd Qgs2 Qrr Qoss Vgs(th) 12nC 4.0nC 1.7nC 14nC 10nC 1.9V l Optimized for both Sync.FET and some Control FET appl.

IRF6712STRPBF_InternationalRectifier.pdf

This datasheet PDF includes multiple part numbers: IRF6712SPBF, IRF6712STRPBF. Please refer to the document for exact specifications by model.

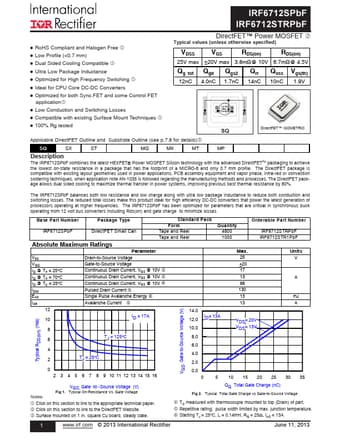

IRF6712SPBF Datasheet Preview Page 2 IRF6712SPBF Datasheet Preview Page 3

Datasheet Details

Part number:

IRF6712SPBF, IRF6712STRPBF

Manufacturer:

International Rectifier

File Size:

247.48 KB

Description:

N-channel hexfet power mosfet.

Note:

This datasheet PDF includes multiple part numbers: IRF6712SPBF, IRF6712STRPBF.
Please refer to the document for exact specifications by model.
