IRF6721STRPBF, IRF6721SPBF Datasheet - International Rectifier

IRF6721STRPBF - Power MOSFET

The IRF6721SPbF combines the latest HEXFET® Power MOSFET Silicon technology with the advanced DirectFETTM packaging to achieve the lowest on-state resistance in a package that has the footprint of a MICRO-8 and only 0.7 mm profile.

The DirectFET package is compatible with existing layout geometries

PD - 96133A IRF6721SPbF IRF6721STRPbF l l l l l l l l l l RoHS Compliant and Halogen Free  Low Profile (<0.7 mm) Dual Sided Cooling Compatible  Ultra Low Package Inductance Optimized for High Frequency Switching  Ideal for CPU Core DC-DC Converters Optimized for Control FET application Low Conduction and Switching Losses Compatible with existing Surface Mount Techniques  100% Rg tested Typical values (unless otherwise specified) DirectFET™ Power MOSFET ‚ RDS(on) Qgs2 1.3nC VDSS Qg tot

IRF6721STRPBF Features

* V) Fig 10. Typical Source-Drain Diode Forward Voltage Typical VGS(th) Gate threshold Voltage (V) 60 50 ID, Drain Current (A) Fig11. Maximum Safe Operating Area 3.0 2.5 40 30 20 10 0 25 50 75 100 125 150 T C , Case Temperature (°C) 2.0 ID = 25µA ID = 100µA ID = 150µA ID = 250µA ID = 1.0mA ID =

IRF6721SPBF_InternationalRectifier.pdf

This datasheet PDF includes multiple part numbers: IRF6721STRPBF, IRF6721SPBF. Please refer to the document for exact specifications by model.

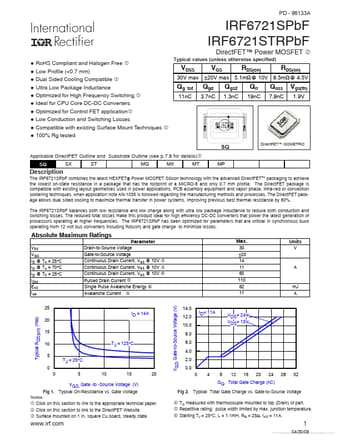

IRF6721STRPBF Datasheet Preview Page 2 IRF6721STRPBF Datasheet Preview Page 3

Datasheet Details

Part number:

IRF6721STRPBF, IRF6721SPBF

Manufacturer:

International Rectifier

File Size:

287.47 KB

Description:

Power mosfet.

Note:

This datasheet PDF includes multiple part numbers: IRF6721STRPBF, IRF6721SPBF.
Please refer to the document for exact specifications by model.
