IRF6722STRPBF

Power MOSFET

IRF6722STRPBF Features

* e Forward Voltage Typical VGS(th) Gate threshold Voltage (V) Fig11. Maximum Safe Operating Area 3.0 60 50 ID, Drain Current (A) 2.5 40 30 20 10 0 25 50 75 100 125 150 T C , Case Temperature (°C) 2.0 ID = 50µA ID = 150µA 1.5 ID = 250µA ID = 1.0mA ID = 1.0A 1.0 -75 -50 -25 0 25 50 75 100 125

IRF6722STRPBF General Description

The IRF6722SPbF combines the latest HEXFET® Power MOSFET Silicon technology with the advanced DirectFETTM packaging to achieve the lowest on-state resistance in a package that has the footprint of a MICRO-8 and only 0.7 mm profile. The DirectFET package is compatible with existing layout geometries .

IRF6722STRPBF Datasheet (282.75 KB)

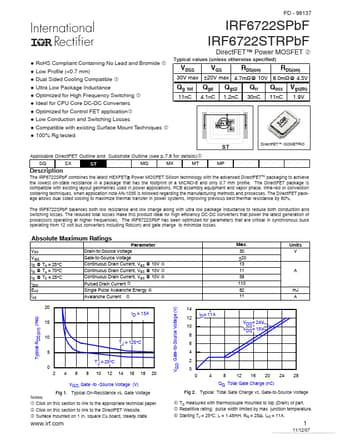

Preview of IRF6722STRPBF PDF

Datasheet Details

Part number:

IRF6722STRPBF

Manufacturer:

International Rectifier

File Size:

282.75 KB

Description:

Power mosfet.
PD - 96137 IRF6722SPbF IRF6722STRPbF l l l l l l l l l l RoHS Compliant Containing No Lead and Bromide  Low Profile (<0.7 mm) Dual Sided Cooling Co.
