IRGB20B60PD1 Datasheet - International Rectifier

IRGB20B60PD1, SMPS IGBT

PD - 94613A SMPS IGBT WARP2 SERIES IGBT WITH ULTRAFAST SOFT RECOVERY DIODE Applications * * * * * * <.

datasheet Preview Page 1 from Datasheet4u.com

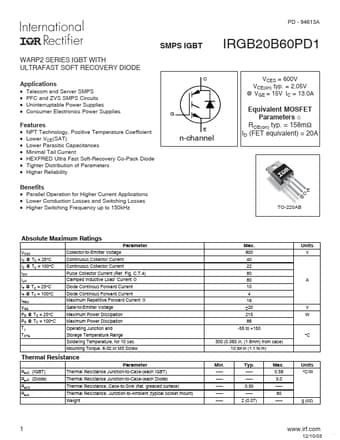

IRGB20B60PD1-InternationalRectifier.pdf

IRGB20B60PD1 Datasheet Preview — Preview of IRGB20B60PD1 PDF

Datasheet Details

Part number:

IRGB20B60PD1

Manufacturer:

International Rectifier

File Size:

373.91 KB

Description:

SMPS IGBT

Features

* NPT Technology, Positive Temperature Coefficient Lower VCE(SAT) Lower Parasitic Capacitances Minimal Tail Current HEXFRED Ultra Fast Soft-Recovery Co-Pack Diode Tighter Distribution of Parameters Higher Reliability n-channel Equivalent MOSFET Parameters RCE(on) typ. = 158mΩ ID (FET equivalent) =

Applications

* Telecom and Server SMPS PFC and ZVS SMPS Circuits Uninterruptable Power Supplies Consumer Electronics Power Supplies C IRGB20B60PD1 VCES = 600V VCE(on) typ. = 2.05V @ VGE = 15V IC = 13.0A
