IRGS14C40LPBF Datasheet, Igbt, International Rectifier

IRGS14C40LPBF Features

• Igbt • Most Rugged in Industry • Logic-Level Gate Drive • > 6KV ESD Gate Protection • Low Saturation Voltage • High Self-clamped Inductive Switching Energy • Lead-Free Description The advanc

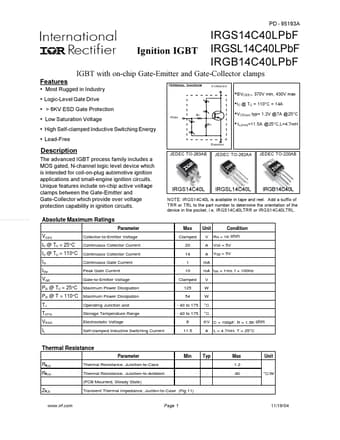

PDF File Details

Part number:

IRGS14C40LPBF

Manufacturer:

International Rectifier

File Size:

314.52kb

Download:

📄 Datasheet

Description:

Igbt. The advanced IGBT process family includes a MOS gated, N-channel logic level device which is intended for coil-on-plug automotive ign

IRGS14C40LPBF Application

• Applications and small-engine ignition circuits. Unique features include on-chip active voltage clamps between the Gate-Emitter and Gate-Collector w

TAGS

IRGS14C40LPBF

International Rectifier
