ME2347-G, ME2347 P-Channel Enhancement Mode Mosfet

ME2347-G Description

P-Channel Enhancement Mode Mosfet GENERAL .
The ME2347 is the P-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology.

ME2347-G Features

* RDS(ON)≦80mΩ@VGS=-10V
* RDS(ON)≦95mΩ@VGS=-4.5V
* RDS(ON)≦120mΩ@VGS=-2.5V
* Super high density cell design for extremely low RDS(ON)

ME2347-G Applications

* Power Management in Note book
* Portable Equipment
* Battery Powered System
* DC/DC Converter
* Load Switch
* DSC
* LCD Display inverter

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ME2347-G, ME2347. Please refer to the document for exact specifications by model.

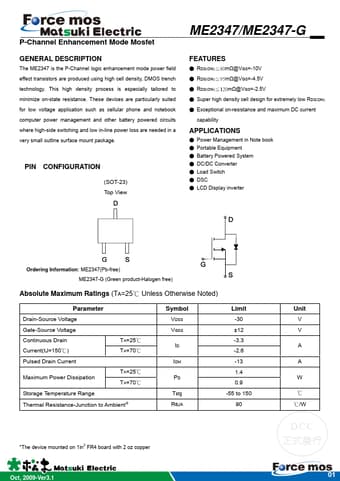

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ME2347-G, ME2347
Manufacturer
Matsuki
File Size
1.19 MB
Datasheet
ME2347-Matsuki.pdf
Description
P-Channel Enhancement Mode Mosfet
Note
This datasheet PDF includes multiple part numbers: ME2347-G, ME2347.
Please refer to the document for exact specifications by model.
