SY10E111AL, SY100E111A - 1:9 DIFFERENTIAL CLOCK DRIVER

Micrel Semiconductor

Datasheet Details

Part number	SY10E111AL, SY100E111A
Manufacturer	Micrel Semiconductor
File Size	102.04 KB
Description	1:9 DIFFERENTIAL CLOCK DRIVER

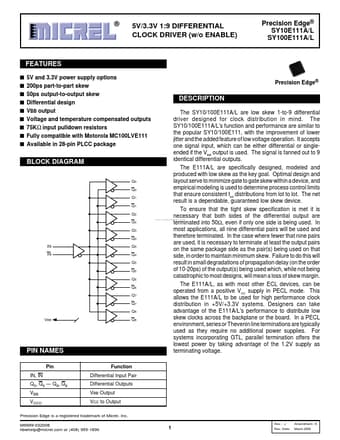

Datasheet	SY100E111A_MicrelSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: SY10E111AL, SY100E111A. Please refer to the document for exact specifications by model.

The SY10/100E111A/L are low skew 1-to-9 differential driver designed for clock distribution in mind.

s s s s s s s s s 5V and 3.3V power supply options 200ps part-to-part skew 50ps output-to-output skew Differential design VBB output Voltage and temperature compensated outputs 75KΩ input pulldown resistors Fully compatible with Motorola MC100LVE111 Available in 28-pin PLCC package Precision Edge®.
