ZL30163 - Network Synchronization Clock Translator

Microsemi

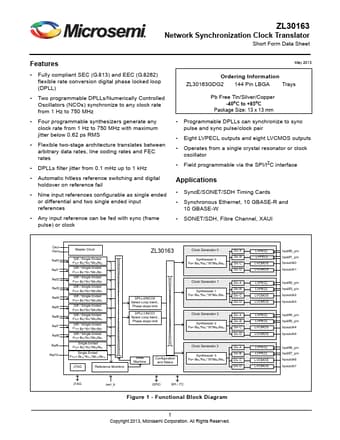

ZL30163 Datasheet Preview — Preview of ZL30163 PDF

Datasheet Details

Part number	ZL30163
Manufacturer	Microsemi ↗
File Size	872.60 KB
Description	Network Synchronization Clock Translator
Datasheet	ZL30163-Microsemi.pdf

ZL30163 Product details

Description

2 Microsemi Corporation ZL30163 Short Form Data Sheet 2.0 Pin Description All device inputs and outputs are LVCMOS unless it is specifically stated to be differential.For the I/O column, there are digital inputs (I), digital outputs (O), analog inputs (A-I) and analog outputs (A-O).Ball # Name Input Reference M3 ref0_p M4 ref0_n L3 ref1_p L4 ref1_n M5 ref2_p M6 ref2_n L5 ref3_p L6 ref3_n M7 ref4_p M8 ref4_n L7 ref5_p L8 ref5_n M9 ref6_p L9 ref6_n M10 ref7_p

Features

Fully compliant SEC (G.813) and EEC (G.8262) flexible rate conversion digital phase locked loop (DPLL).
Two programmable DPLLs/Numerically Controlled Oscillators (NCOs) synchronize to any clock rate from 1 Hz to 750 MHz.
Four programmable synthesizers generate any clock rate from 1 Hz to 750 MHz with maximum jitter below 0.62 ps RMS.
Flexible two-stage architecture translates between arbitrary data rates, line coding rates and FEC rates.
DPLLs filter.
