MGFC39V3742A Datasheet - Mitsubishi

MGFC39V3742A C band internally matched power GaAs FET

MGFC39V3742A Features

* Class A operation Internally matched to 50(ohm) system

* High output power P1dB=8W (TYP.) @f=3.7

* 4.2GHz

* High power gain GLP=12.0dB (TYP.) @f=3.7

* 4.2GHz

* High power added efficiency P.A.E.=31% (TYP.) @f=3.7

* 4.2GHz

* Low distortion [item -51] IM3=-45dBc

MGFC39V3742A_MitsubishiElectricSemiconductor.pdf

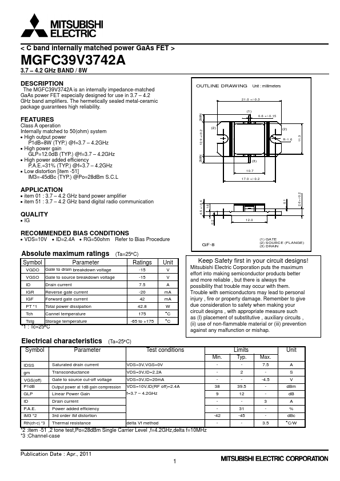

Preview of MGFC39V3742A PDF
MGFC39V3742A Datasheet Preview Page 2

Datasheet Details

Part number:

MGFC39V3742A

Manufacturer:

Mitsubishi

File Size:

86.28 KB

Description:

C band internally matched power gaas fet.
