MGFC39V4450A Datasheet - Mitsubishi

MGFC39V4450A C band internally matched power GaAs FET

MGFC39V4450A Features

* Class A operation Internally matched to 50(ohm) system

* High output power P1dB=8W (TYP.) @f=4.4

* 5.0GHz

* High power gain GLP=11.5dB (TYP.) @f=4.4

* 5.0GHz

* High power added efficiency P.A.E.=30% (TYP.) @f=4.4

* 5.0GHz

* Low distortion [item -51] IM3=-45dBc

MGFC39V4450A_MitsubishiElectricSemiconductor.pdf

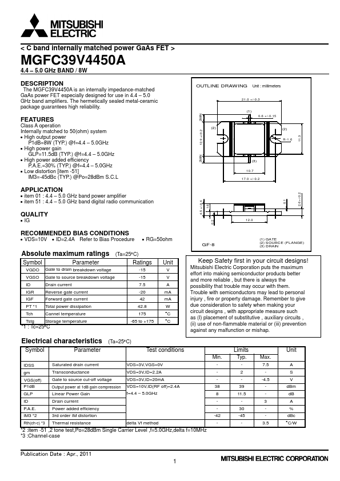

Preview of MGFC39V4450A PDF
MGFC39V4450A Datasheet Preview Page 2

Datasheet Details

Part number:

MGFC39V4450A

Manufacturer:

Mitsubishi

File Size:

86.32 KB

Description:

C band internally matched power gaas fet.
