2N3292, 2N3291 Datasheet - Motorola

2N3292, 2N3291, NPN silicon annular transistor

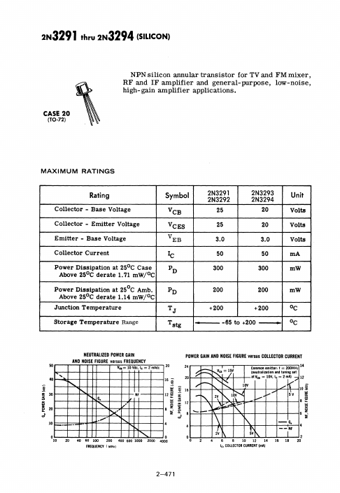

2N3291 thru 2N3294 (SILICON) CASE 20 (TO-72) NPN silicon annular transistor for TV and FM mixer, RF and IF amplifier and general-purpose, low-noise,.

datasheet Preview Page 1 from Datasheet4u.com

2N3291-Motorola.pdf

2N3292 Datasheet Preview — This datasheet PDF includes multiple part numbers: 2N3292, 2N3291. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

2N3292, 2N3291

Manufacturer:

Motorola

File Size:

125.54 KB

Description:

NPN silicon annular transistor

Note:

This datasheet PDF includes multiple part numbers: 2N3292, 2N3291.
Please refer to the document for exact specifications by model.

Applications

* MAXIMUM RATINGS Rating Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Symbol VCB VCES VEB 2N3291 2N3292 25 25 3.0 2N3293 2N3294 20 20 3.0 Unit Volts Volts Volts Collector Current Ie 50 50 mA Power Dissipation at 25°C Case PD 300 300 mW Above 25°C derate
