2N3293, 2N3291 Datasheet - Motorola

2N3293 NPN silicon annular transistor

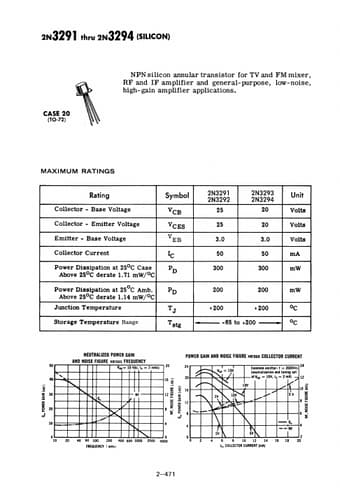

2N3291 thru 2N3294 (SILICON) CASE 20 (TO-72) NPN silicon annular transistor for TV and FM mixer, RF and IF amplifier and general-purpose, low-noise, high-gain amplifier applications. MAXIMUM RATINGS Rating Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Symbol VCB VCES VEB 2N3291 2N3292 25 25 3.0 2N3293 2N3294 20 20 3.0 Unit Volts Volts Volts Collector Current Ie 50 50 mA Power Dissipation at 25°C Case PD 300 300 mW Above 25°C derate 1. 71 mW/oC Pow.

2N3293, 2N3291 Datasheet

This datasheet PDF includes multiple part numbers: 2N3293, 2N3291. Please refer to the document for exact specifications by model.
2N3293 Datasheet Preview Page 2

Datasheet Details

Part number:

2N3293, 2N3291

Manufacturer:

Motorola

File Size:

125.54 KB

Description:

Npn silicon annular transistor.

This datasheet PDF includes multiple part numbers: 2N3293, 2N3291. Please refer to the document for exact specifications by model.
