2N3294, 2N3291 - NPN silicon annular transistor

2N3294 Description

2N3291 thru 2N3294 (SILICON) CASE 20 (TO-72) NPN silicon annular transistor for TV and FM mixer, RF and IF amplifier and general-purpose, low-noise,.

2N3294 Applications

* MAXIMUM RATINGS Rating Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Symbol VCB VCES VEB 2N3291 2N3292 25 25 3.0 2N3293 2N3294 20 20 3.0 Unit Volts Volts Volts Collector Current Ie 50 50 mA Power Dissipation at 25°C Case PD 300 300 mW Above 25°C derate

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2N3294, 2N3291. Please refer to the document for exact specifications by model.

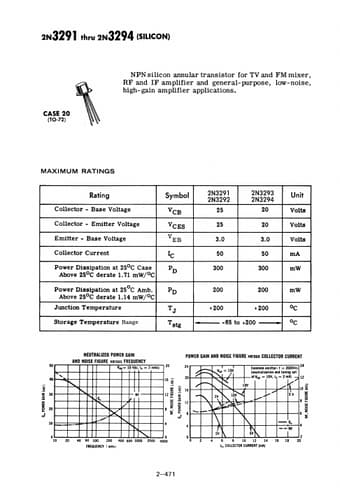

datasheet Preview Page 2

Datasheet Details

Part number
2N3294, 2N3291
Manufacturer
Motorola
File Size
125.54 KB
Datasheet
2N3291-Motorola.pdf
Description
NPN silicon annular transistor
Note
This datasheet PDF includes multiple part numbers: 2N3294, 2N3291.
Please refer to the document for exact specifications by model.
