MRF21030SR3 - RF POWER FIELD EFFECT TRANSISTORS

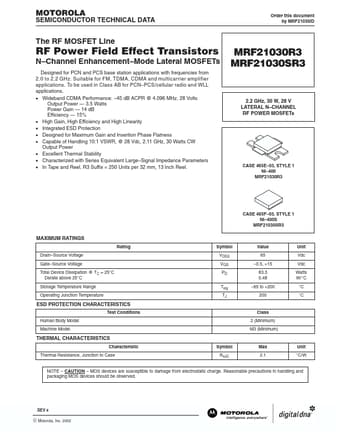

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MRF21030/D The RF MOSFET Line RF Power Field Effect Transistors N Channel Enhancement Mode Lateral MOSFETs Designed for PCN and PCS base station applications with frequencies from 2.0 to 2.2 GHz.

Suitable for FM, TDMA, CDMA and multicarrier amplifier applications.

To be used in Class AB for PCN PCS/cellular radio and WLL applications.

Wideband CDMA Performance: 45 dB ACPR @ 4.096 MHz, 28 V

MRF21030SR3 Features

* .057 .067 .092 .122 .395 .405 .395 .405 .395 .405 .395 .405 .005 REF .010 REF .015 REF MILLIMETERS MIN MAX 10.03 10.29 10.03 10.29 3.18 4.14 6.98 7.24 0.89 1.14 0.08 0.15 1.45 1.70 2.34 3.10 10.03 10.29 10.03 10.29 10.03 10.29 10.03 10.29 0.127 REF 0.254 REF 0.38 REF 2X K R ccc E M (LID) T A M B

MRF21030R3_Motorola.pdf

This datasheet PDF includes multiple part numbers: MRF21030SR3, MRF21030R3. Please refer to the document for exact specifications by model.
MRF21030SR3 Datasheet Preview Page 2 MRF21030SR3 Datasheet Preview Page 3

Datasheet Details

Part number:

MRF21030SR3, MRF21030R3

Manufacturer:

Motorola

File Size:

377.53 KB

Description:

Rf power field effect transistors.

Note:

This datasheet PDF includes multiple part numbers: MRF21030SR3, MRF21030R3.
Please refer to the document for exact specifications by model.
