MRF21045LR3 Datasheet - Motorola

MRF21045LR3 RF Power Field Effect Transistors

Short Ferrite Bead, Fair Rite, #2743019447 43 pF Chip Capacitors, ATC #100B430JCA500X 5.6 pF Chip Capacitor, ATC #100B5R6JCA500X 1000 pF Chip Capacitors, ATC #100B102JCA500X 0.1 mF Chip Capacitors, Kemet #CDR33BX104AKWS 1.0 mF Tantalum Chip Capacitor, Kemet #T491C105M050 10 mF Tantalum Chip Capacito.

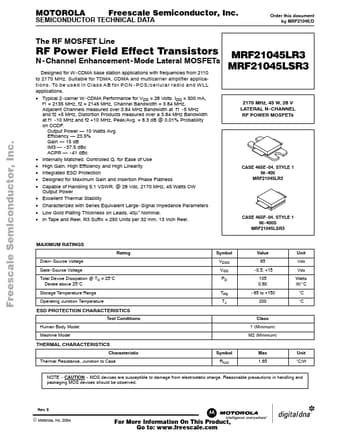

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Freescale Semiconductor, Inc. Order this document by MRF21045/D The RF MOSFET Line RF Power Field Effect Transistors Designed for W- CDMA base station applications with frequencies from 2110 to 2170 MHz. Suitable for TDMA, CDMA and multicarrier amplifier applicat i o n s . To b e u s e d i n C l a s s A B f o r P C N - P C S / c e l l u l a r r a d i o a n d W L L applications. Typical 2-carrier W-CDMA Performance for VDD = 28 Volts, IDQ = 500.

MRF21045LR3 Features

* 0 20 60 42 41 40 Figure 6. 2 - Carrier W - CDMA Broadband Performance

* 24 η

* 25

* 26 IMD 39 38 37 36 IDQ = 500 mA Pout = 45 W (PEP) f1 = 2135 MHz, f2 = 2145 MHz 25 26 27 28 29

* 27

* 28

* 29

* 30

* 31

* 32 VDD, DRAIN SUPPLY (V) Figur

MRF21045LR3 Datasheet (550.17 KB)

MRF21045LR3 Datasheet Preview — Preview of MRF21045LR3 PDF

Datasheet Details

Part number:

MRF21045LR3

Manufacturer:

Motorola

File Size:

550.17 KB

Description:

Rf power field effect transistors.
