MRF21010LR1 Datasheet - Freescale Semiconductor

MRF21010LR1 RF Power Field Effect Transistors

Freescale Semiconductor Technical Data RF Power Field Effect Transistors N Channel Enhancement Mode Lateral MOSFETs Designed for W CDMA base station applications with frequencies from 2110 to 2170 MHz. Suitable for FM, TDMA, CDMA and multicarrier amplifier applications. To be used in Class AB for PCN PCS/cellular radio and WLL applications. Typical W CDMA Performance: 45 dBc ACPR, 2140 MHz, 28 Volts, 5 MHz Offset/4.096 MHz BW, 15 DTCH Ou.

MRF21010LR1 Features

* High Gain, High Efficiency and High Linearity

* Integrated ESD Protection

* Designed for Maximum Gain and Insertion Phase Flatness

* Excellent Thermal Stability

* Characterized with Series Equivalent Large

* Signal Impedance Parameters

* Low Go

MRF21010LR1 Datasheet (428.58 KB)

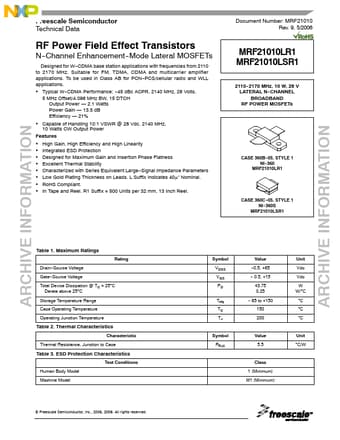

MRF21010LR1 Datasheet Preview — Preview of MRF21010LR1 PDF

Datasheet Details

Part number:

MRF21010LR1

Manufacturer:

Freescale Semiconductor

File Size:

428.58 KB

Description:

Rf power field effect transistors.
