NCEP60T12K

N-Channel Super Trench Power MOSFET

NCE Power Semiconductor

NCEP60T12K Features

* VDS =60V,ID =120A RDS(ON) < 4.0mΩ @ VGS=10V (Typ:3.6mΩ)

* Excellent gate charge x RDS(on) product

* Very low on-resistance RDS(on)

* 175 °C operating temperature

* Pb-free lead plating

* 100% UIS tested Application

* DC/DC Converter

* Ideal for high-frequency switch

NCEP60T12K General Description

The NCEP60T12K uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg. This device is ideal for high-frequency switching.

NCEP60T12K Datasheet (430.13 KB)

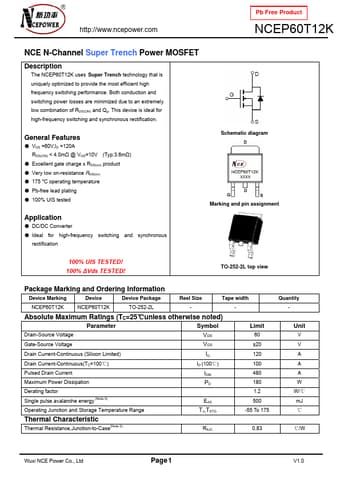

NCEP60T12K Datasheet Preview — Preview of NCEP60T12K PDF

Datasheet Details

Part number:

NCEP60T12K

Manufacturer:

NCE Power Semiconductor

File Size:

430.13 KB

Description:

N-channel super trench power mosfet.
