NCEP60T15K

N-Channel Super Trench Power MOSFET

NCEP60T15K Features

* VDS =60V,ID =150A RDS(ON) < 3.4mΩ @ VGS=10V (Typ:3.1mΩ)

* Excellent gate charge x RDS(on) product

* Very low on-resistance RDS(on)

* 175 °C operating temperature

* Pb-free lead plating

* 100% UIS tested Schematic diagram Application

* DC/DC Converter

* Ideal for h

NCEP60T15K General Description

The NCEP60T15K uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg. This device is ideal for high-frequency switching.

NCEP60T15K Datasheet (371.27 KB)

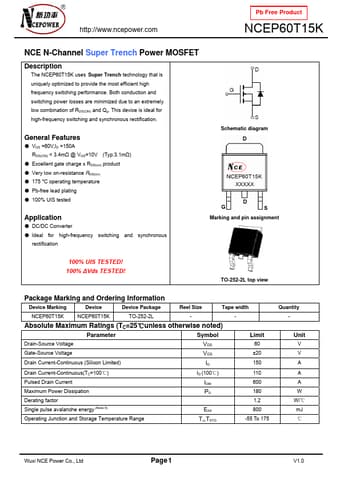

Preview of NCEP60T15K PDF

Datasheet Details

Part number:

NCEP60T15K

Manufacturer:

NCE Power Semiconductor

File Size:

371.27 KB

Description:

N-channel super trench power mosfet.
