NCEP60T15G

N-Channel Super Trench Power MOSFET

NCE Power Semiconductor

NCEP60T15G Features

* VDS =60V,ID =150A RDS(ON) < 3.3mΩ @ VGS=10V (Typ:2.8mΩ)

* Excellent gate charge x RDS(on) product

* Very low on-resistance RDS(on)

* 150 °C operating temperature

* Pb-free lead plating

* 100% UIS tested Only UseMarking and pin assignment s Application e

* DC/DC Conver

NCEP60T15G General Description

The NCEP60T15G uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg. This device is ideal for high-frequency swi.

NCEP60T15G Datasheet (1.09 MB)

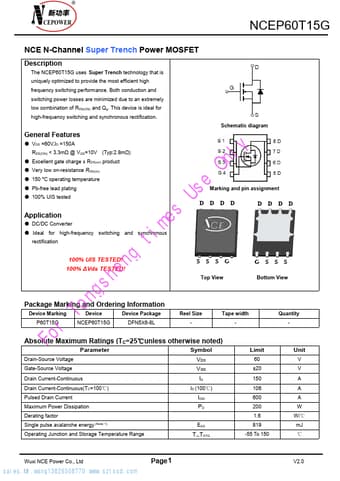

NCEP60T15G Datasheet Preview — Preview of NCEP60T15G PDF

Datasheet Details

Part number:

NCEP60T15G

Manufacturer:

NCE Power Semiconductor

File Size:

1.09 MB

Description:

N-channel super trench power mosfet.
