NESG210833 - NPN SiGe RF TRANSISTOR

Product Overview

NEC

📥 Download Datasheet

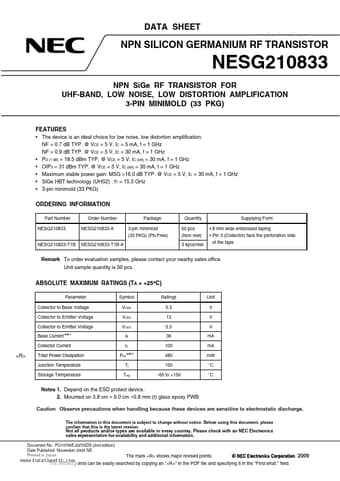

NESG210833 NPN SiGe RF TRANSISTOR by NEC - Datasheet Preview — Datasheet preview – NESG210833

Datasheet Details

Part number	NESG210833
Manufacturer	NEC
File Size	121.28 KB
Description	NPN SiGe RF TRANSISTOR
Datasheet	NESG210833 Datasheet
Additional preview pages of the NESG210833 datasheet.

Product details

Features

The device is an ideal choice for low noise, low distortion amplification. NF = 0.7 dB TYP. @ VCE = 5 V, IC = 5 mA, f = 1 GHz NF = 0.9 dB TYP. @ VCE = 5 V, IC = 30 mA, f = 1 GHz.
PO (1 dB) = 18.5 dBm TYP. @ VCE = 5 V, IC (set) = 30 mA, f = 1 GHz.
OIP3 = 31 dBm TYP. @ VCE = 5 V, IC (set) = 30 mA, f = 1 GHz.
Maximum stable power gain: MSG =16.0 dB TYP. @ VCE = 5 V, IC = 30 mA, f = 1 GHz.
SiGe HBT technology (UHS2) : fT = 15.5 GHz.
3-pin minimo.
