BLF6G22-45 - Power LDMOS transistor

Product Overview

NXP Semiconductors

Datasheet Details

Part number	BLF6G22-45
Manufacturer	NXP Semiconductors
File Size	98.85 KB
Description	Power LDMOS transistor
Datasheet	BLF6G22-45 Datasheet

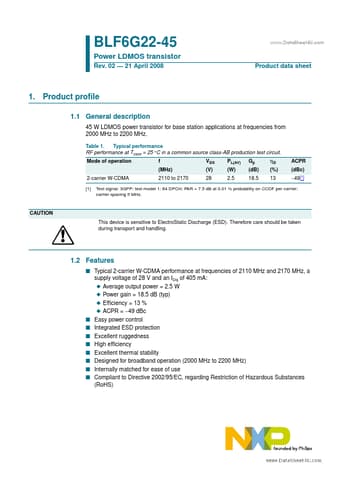

Additional preview pages of the BLF6G22-45 datasheet.

Product details

Description

45 W LDMOS power transistor for base station applications at frequencies from 2000 MHz to 2200 MHz. 49[1] Test signal: 3GPP; test model 1; 64 DPCH; PAR = 7.5 dB at 0.01 % probability on CCDF per carrier; carrier spacing 5 MHz.CAUTION This device is

Features

I Typical 2-carrier W-CDMA performance at frequencies of 2110 MHz and 2170 MHz, a supply voltage of 28 V and an IDq of 405 mA: N Average output power = 2.5 W N Power gain = 18.5 dB (typ) N Efﬁciency = 13 % N ACPR =.
49 dBc I Easy power control I Integrated ESD protection I Excellent ruggedness I High efﬁciency I Excellent thermal stability I Designed for broadband operation (2000 MHz to 2200 MHz) I Internally matched for ease of use I Compliant to Directive 2002/95/EC, regarding Restrict.
