NX3008NBKV, MOSFET

SO T6 NX3008NBKV 30 V, 400 mA dual N-channel Trench MOSFET Rev.1 * 1 August 2011 Product data sheet 1.Product profile 1.1 General descript.
Dual N-channel enhancement mode Field-Effect Transistor (FET) in an ultra small and flat lead SOT666 Surface-Mounted Device (SMD) plastic package usin.

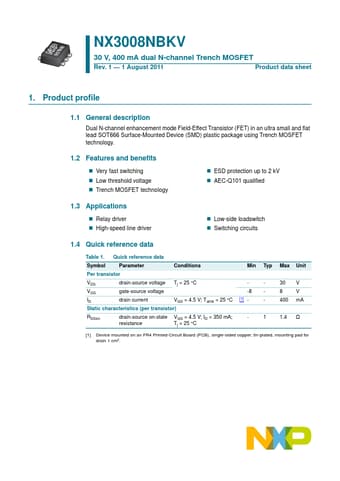

datasheet Preview Page 1 from Datasheet4u.com

NX3008NBKV-NXPSemiconductors.pdf

NX3008NBKV Datasheet Preview — Preview of NX3008NBKV PDF

Datasheet Details

Part number:

NX3008NBKV

Manufacturer:

NXP ↗ Semiconductors

File Size:

305.32 KB

Description:

MOSFET

Features

* Very fast switching
* Low threshold voltage
* Trench MOSFET technology
* ESD protection up to 2 kV

Applications

* Relay driver
* High-speed line driver
* Low-side loadswitch
* Switching circuits 1.4 Quick reference data Table 1. Symbol VDS VGS ID RDSon Quick reference data Parameter drain-source voltage gate-source voltage drain current drain-source on-state resistance VGS = 4.5 V; Tamb = 25
