DS90LV047A

3V LVDS Quad CMOS Differential Line Driver

DS90LV047A Features

* n n n n n n n n n n n n n > 400 Mbps (200 MHz) switching rates Flow-through pinout simplifies PCB layout 300 ps typical differential skew 400 ps maximum differential skew 1.7 ns maximum propagation delay 3.3V power supply design ± 350 mV differential signaling Low power dissipation (13mW at 3.3V st

DS90LV047A General Description

The DS90LV047A is a quad CMOS flow-through differential line driver designed for applications requiring ultra low power dissipation and high data rates. The device is designed to support data rates in excess of 400 Mbps (200 MHz) utilizing Low Voltage Differential Signaling (LVDS) technology. The DS.

DS90LV047A Datasheet (268.11 KB)

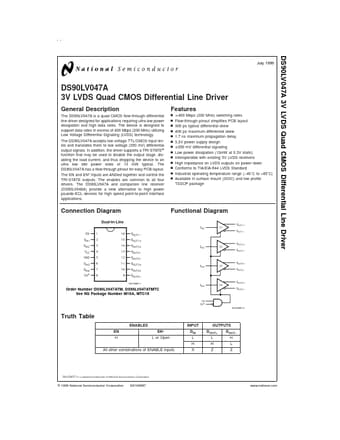

Preview of DS90LV047A PDF

Datasheet Details

Part number:

DS90LV047A

Manufacturer:

National Semiconductor

File Size:

268.11 KB

Description:

3v lvds quad cmos differential line driver.
