DS90LV049

3V LVDS Dual Line Driver with Dual Line Receiver

DS90LV049 Features

* n n n n n n n n n n n n Up to 400 Mbps switching rates Flow-through pinout simplifies PCB layout 50 ps typical driver channel-to-channel skew 50 ps typical receiver channel-to-channel skew 3.3 V single power supply design TRI-STATE output control Internal fail-safe biasing of receiver inputs Low pow

DS90LV049 General Description

The DS90LV049 is a dual CMOS flow-through differential line driver-receiver pair designed for applications requiring ultra low power dissipation, exceptional noise immunity, and high data throughput. The device is designed to support data rates in excess of 400 Mbps utilizing Low Voltage Differentia.

DS90LV049 Datasheet (230.14 KB)

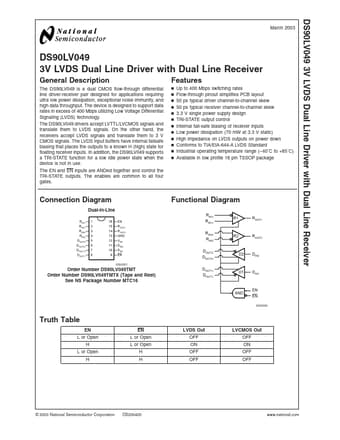

Preview of DS90LV049 PDF

Datasheet Details

Part number:

DS90LV049

Manufacturer:

National Semiconductor

File Size:

230.14 KB

Description:

3v lvds dual line driver with dual line receiver.
