DS90LV048A

3V LVDS Quad CMOS Differential Line Receiver

DS90LV048A Features

* n n n n n n n n n n n n n n > 400 Mbps (200 MHz) switching rates Flow-through pinout simplifies PCB layout 150 ps channel-to-channel skew (typical) 100 ps differential skew (typical) 2.7 ns maximum propagation delay 3.3V power supply design High impedance LVDS inputs on power down Low Power design

DS90LV048A General Description

The DS90LV048A is a quad CMOS flow-through differential line receiver designed for applications requiring ultra low power dissipation and high data rates. The device is designed to support data rates in excess of 400 Mbps (200 MHz) utilizing Low Voltage Differential Signaling (LVDS) technology. The .

DS90LV048A Datasheet (245.58 KB)

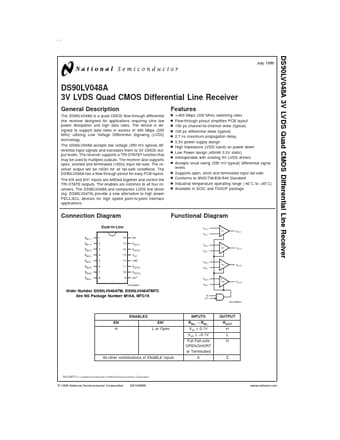

Preview of DS90LV048A PDF

Datasheet Details

Part number:

DS90LV048A

Manufacturer:

National Semiconductor

File Size:

245.58 KB

Description:

3v lvds quad cmos differential line receiver.
