DS90LV049H

high temperature 3-V LVDS dual line driver and receiver pair

DS90LV049H Features

* 1 High Temperature +125°C Operating Range

* Up to 400-Mbps Switching Rates

* Flow-Through Pinout Simplifies PCB Layout

* 50-ps Typical Driver Channel-to-Channel Skew

* 50-ps Typical Receiver Channel-to-Channel Skew

* 3.3-V Single Power Supply Design

DS90LV049H General Description

The DS90LV049H is a dual CMOS differential line driver-receiver pair designed for applications requiring ultra low power dissipation, exceptional noise immunity, and high data throughput. The device is designed to support data rates in excess of 400 Mbps utilizing Low Voltage Differential Signaling .

DS90LV049H Datasheet (0.99 MB)

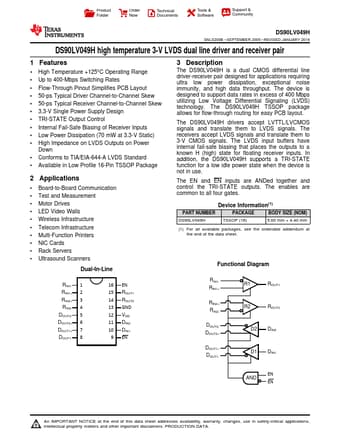

Preview of DS90LV049H PDF

Datasheet Details

Part number:

DS90LV049H

Manufacturer:

Texas Instruments ↗

File Size:

0.99 MB

Description:

High temperature 3-v lvds dual line driver and receiver pair.
