DS90LV049H

High Temperature 3V LVDS Dual Line Driver and Receiver Pair

DS90LV049H Features

* n n n n n n n n n n n n High Temperature +125˚C Operating Range Up to 400 Mbps switching rates Flow-through pinout simplifies PCB layout 50 ps typical driver channel-to-channel skew 50 ps typical receiver channel-to-channel skew 3.3 V single power supply design TRI-STATE output control Internal fail

DS90LV049H General Description

The DS90LV049H is a dual CMOS flow-through differential line driver-receiver pair designed for applications requiring ultra low power dissipation, exceptional noise immunity, and high data throughput. The device is designed to support data rates in excess of 400 Mbps utilizing Low Voltage Differenti.

DS90LV049H Datasheet (640.11 KB)

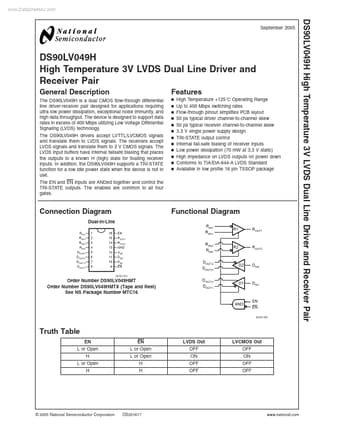

Preview of DS90LV049H PDF

Datasheet Details

Part number:

DS90LV049H

Manufacturer:

National Semiconductor

File Size:

640.11 KB

Description:

High temperature 3v lvds dual line driver and receiver pair.
www.DataSheet4U.com DS90LV049H High Temperature 3V LVDS Dual Line Driver and Receiver Pair September 2005 DS90LV049H High Temperature 3V LVDS Dual .
