UJ4N075004L8S Product details

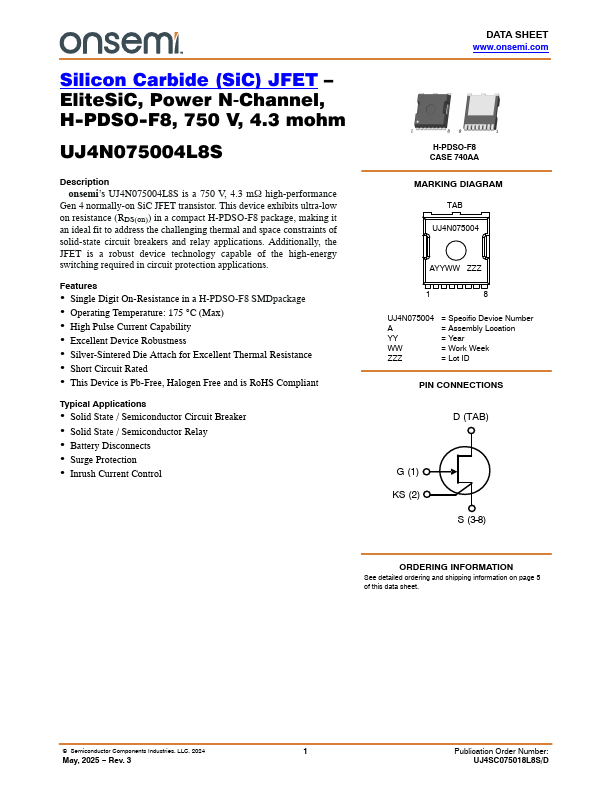

Description

onsemi’s UJ4N075004L8S is a 750 V, 4.3 mW high-performance Gen 4 normally-on SiC JFET transistor.This device exhibits ultra-low on resistance (RDS(on)) in a compact H-PDSO-F8 package, making it an ideal fit to address the challenging thermal and space constraints of solid-state circuit breakers and relay applications.Additionally, the JFET is a robust device technology capable of the high-energy switching required in circuit protection applications.

Features

Single Digit On-Resistance in a H-PDSO-F8 SMDpackage.
Operating Temperature: 175 C (Max).
High Pulse Current Capability.
Excellent Device Robustness.
Silver-Sintered Die Attach for Excellent Thermal Resistance.
Short Circuit Rated.
This Device is Pb-Free, Halogen Free and is RoHS Compliant Typical.
