2SD1633, Silicon NPN Transistor

Power Transistors 2SD1633 Silicon NPN triple diffusion planar type darlington Unit: mm 0.7±0.1 For voltage switching * .

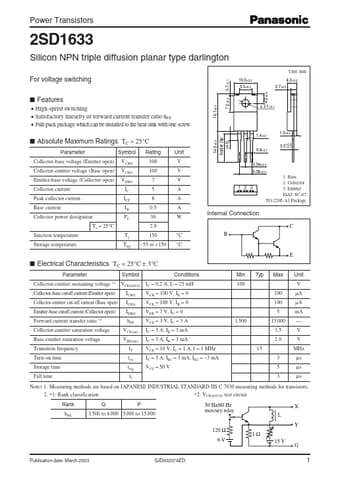

datasheet Preview Page 1 from Datasheet4u.com

2SD1633_PanasonicSemiconductor.pdf

2SD1633 Datasheet Preview — Preview of 2SD1633 PDF

Datasheet Details

Part number:

2SD1633

Manufacturer:

Panasonic Semiconductor

File Size:

92.00 KB

Description:

Silicon NPN Transistor

Features

* High-speed switching
* Satisfactory linearity of forward current transfer ratio hFE
* Full-pack package which can be installed to the heat sink with one screw 16.7±0.3 10.0±0.2 5.5±0.2 4.2±0.2 4.2±0.2 2.7±0.2 7.5±0.2 φ 3.1±0.1 Solder Dip (4.0) 14.0±0.5
* Absolute

Applications

* or general electronic equipment (such as office equipment, communications equipment, measuring instruments and household appliances). Consult our sales staff in advance for information on the following applications:
* Special applications (such as for airplanes, aerospace, automobiles, traff
