2SD1634 - NPN Transistor

2SD1634 Description

isc Silicon NPN Darlington Power Transistor 2SD1634 .
Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 100V(Min). High DC Current Gain : hFE= 1500(Min) @IC= 5A. High Speed Switching. Mi.

2SD1634 Applications

* Designed for power switching applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 100 V VCEO Collector-Emitter Voltage 100 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Continuous 8 A ICP Collector Current-Peak 12

📥 Download Datasheet

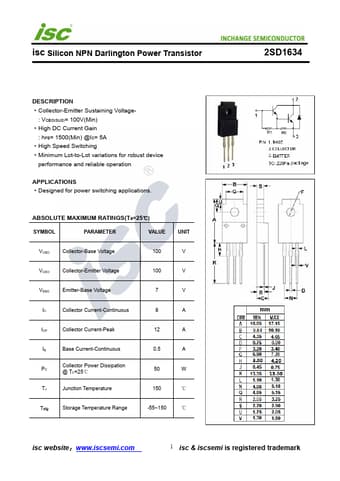

Preview of 2SD1634 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SD1634
Manufacturer
INCHANGE
File Size
212.53 KB
Datasheet
2SD1634-INCHANGE.pdf
Description
NPN Transistor
