QPD0012

Asymmetric Doherty

QPD0012 Features

* Operating Frequency Range: 2.5

* 2.7 GHz

* Operating Drain Voltage: +48 V

* Peak Doherty Output Power: 47.3 dBm

* Doherty Drain Efficiency at 38.8 dBm: 59%

* Doherty Gain at 38.8 dBm: 14.8 dB

* 7.0 x 6.5 mm DFN Package Functional Block Diagr

QPD0012 General Description

7” Reel

* 100 Pieces Production Evaluation Board Kit 1 of 9 www.qorvo.com QPD0012 ® 20 W / 40 W, 48 V, 2.5

* 2.7 GHz, Asymmetric Doherty Absolute Maximum Ratings Recommended Operating Conditions Parameter Breakdown Voltage (BVDG) Gate Voltage Range (VG1,2) Drain Voltage (VD1,.

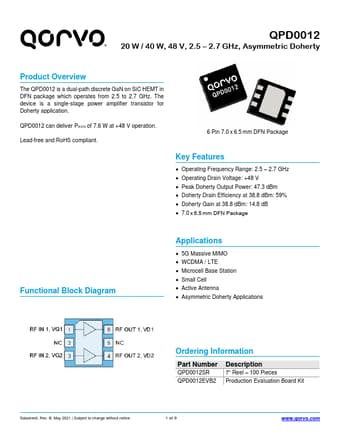

QPD0012 Datasheet (935.97 KB)

Preview of QPD0012 PDF

Datasheet Details

Part number:

QPD0012

Manufacturer:

Qorvo

File Size:

935.97 KB

Description:

Asymmetric doherty.
QPD0012 ® 20 W / 40 W, 48 V, 2.5

* 2.7 GHz, Asymmetric Doherty Transistor Product Overview The QPD0012 is a dual-path discrete GaN on SiC HEM.
