QPD0005M - GaN RF Transistor

Qorvo

📥 Download Datasheet

QPD0005M Datasheet Preview — Preview of QPD0005M PDF

Datasheet Details

Part number: QPD0005M
Manufacturer: Qorvo
File Size: 1.60 MB
Datasheet: QPD0005M-Qorvo.pdf
Description: GaN RF Transistor

QPD0005M Product details

Description

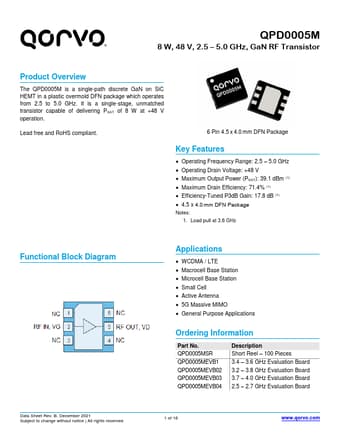

Short Reel. 100 Pieces 3.4. 3.6 GHz Evaluation Board 3.2. 3.8 GHz Evaluation Board 3.7. 4.0 GHz Evaluation Board 2.5. 2.7 GHz Evaluation Board Data Sheet Rev.B, December 2021 Subject to change without notice | All rights reserved 1 of 16 www.qorvo.com ® Absolute Maximum Ratings Parameter Rating Breakdown Voltage (BVDG) +165 V Gate Voltage Range (VG). 7 to +2 V Drain Voltage (VD) +55 V Peak RF Input Power, CW Pulsed +28.4 dBm V.

Features

Operating Frequency Range: 2.5.
5.0 GHz.
Operating Drain Voltage: +48 V.
Maximum Output Power (PSAT): 39.1 dBm (1).
Maximum Drain Efficiency: 71.4% (1).
Efficiency-Tuned P3dB Gain: 17.8 dB (1).
4.5 x 4.0 mm DFN Package Notes: 1. Load pull at 3.6 GHz Functional Block Diagram.
