QPD2025D

Discrete GaAs pHEMT

QPD2025D Features

* advanced techniques to optimize microwave power and efficiency at high drain bias operating conditions. QPD2025D 250 um Discrete GaAs pHEMT The QPD2025D typically provides 24 dBm of output power at P1dB with gain of 14 dB and 58% power-added efficiency at 1 dB compression. This performance makes t

QPD2025D General Description

250 um GaAs pHEMT 1 of 2 www.qorvo.com QPD2025D ® 250 um Discrete GaAs pHEMT Absolute Maximum Ratings1 Parameter Absolute Continuous Units Drain-Source Voltage (VDS)(2) 12 8 V Gate-Source Voltage (VGS) -7 -3 V Drain Current (IDS)(2) IDSS IDSS mA Forward Gate Current (IG,F) 12.

QPD2025D Datasheet (0.97 MB)

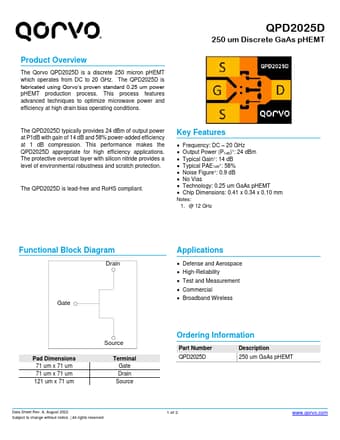

Preview of QPD2025D PDF

Datasheet Details

Part number:

QPD2025D

Manufacturer:

Qorvo

File Size:

0.97 MB

Description:

Discrete gaas phemt.
® Product Overview The Qorvo QPD2025D is a discrete 250 micron pHEMT which operates from DC to 20 GHz. The QPD2025D is fabricated using Qorvo’s proven.
