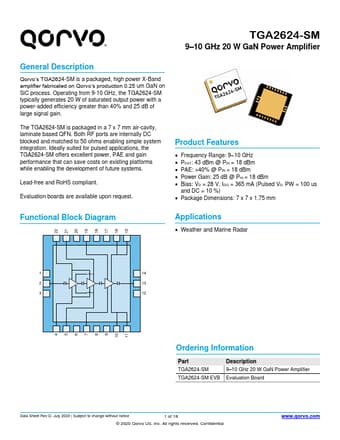

TGA2624-SM Datasheet Preview — Preview of TGA2624-SM PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: TGA2624-SM
Manufacturer: Qorvo
File Size: 690.62 KB
Datasheet: TGA2624-SM-Qorvo.pdf
Description: 20W GaN Power Amplifier

TGA2624-SM Product details

Description

Qorvo’s TGA2624-SM is a packaged, high power X-Band amplifier fabricated on Qorvo’s production 0.25 um GaN on SiC process.

Features

Frequency Range: 9.
10 GHz.
PSAT: 43 dBm @ PIN = 18 dBm.
PAE: >40% @ PIN = 18 dBm.
Power Gain: 25 dB @ PIN = 18 dBm.
Bias: VD = 28 V, IDQ = 365 mA (Pulsed VD: PW = 100 us and DC = 10 %).
Package Dimensions: 7 x 7 x 1.75 mm Functional Block Diagram.
