TGA2620

Driver Amplifier

TGA2620 Features

* Frequency Range: 16

* 18GHz

* PSAT: 19dBm

* P1dB: 18dBm

* Small Signal Gain: 20dB

* Input Return Loss: 20dB

* Output Return Loss: 25dB

* Bias: VD = 6V, IDQ = 30mA, VG = -0.6V Typical

* Chip Dimensions: 1.14 x 1.24 x 0.10 mm Functional Block Diagram 23 14 G

TGA2620 General Description

TriQuint’s TGA2620 is a Ku-band MMIC driver amplifier fabricated on TriQuint’s 0.15um GaAs pHEMT production process. Operating from 16-18GHz, the TGA2620 provides more than 19dBm saturated output power, 18dBm P1dB and more than 20dB small signal gain. Fully matched to 50 ohms with integrated DC bloc.

TGA2620 Datasheet (470.98 KB)

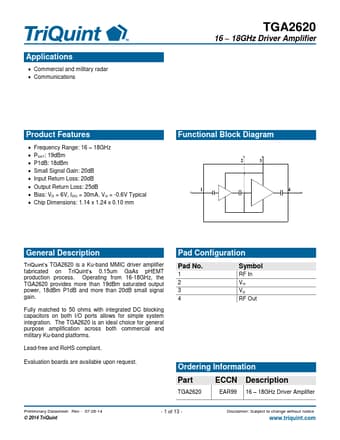

Preview of TGA2620 PDF

Datasheet Details

Part number:

TGA2620

Manufacturer:

TriQuint Semiconductor

File Size:

470.98 KB

Description:

Driver amplifier.
