TGA2623 - GaN Power Amplifier

TriQuint Semiconductor

📥 Download Datasheet

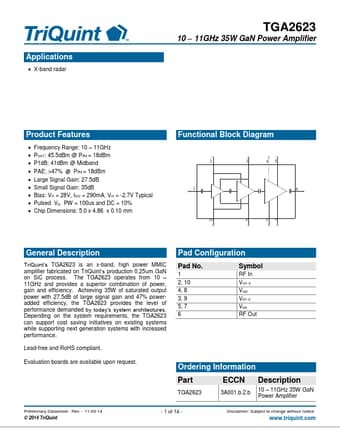

TGA2623 Datasheet Preview — Preview of TGA2623 PDF

Datasheet Details

Part number: TGA2623
Manufacturer: TriQuint Semiconductor
File Size: 518.99 KB
Datasheet: TGA2623-TriQuintSemiconductor.pdf
Description: GaN Power Amplifier

TGA2623 Product details

Description

TriQuint’s TGA2623 is an x-band, high power MMIC amplifier fabricated on TriQuint’s production 0.25um GaN on SiC process. 11GHz and provides a superior combination of power, gain and efficiency.

Features

Frequency Range: 10.
11GHz.
PSAT: 45.5dBm @ PIN = 18dBm.
P1dB: 41dBm @ Midband.
PAE: >47% @ PIN = 18dBm.
Large Signal Gain: 27.5dB.
Small Signal Gain: 35dB.
Bias: VD = 28V, IDQ = 290mA, VG = -2.7V Typical.
Pulsed VD: PW = 100us and DC = 10%.
Chip Dimensions: 5.0 x 4.86 x 0.10 mm Functional Block Diagram 2 3 45 16 10 9 8 7 General.
